Drone mapping for every type of construction project

Every site is different and brings with it different challenges. One tool helps planning, monitoring, and documentation: drone mapping.
Download PDF
First publishedJuly 20, 2018
UpdatedJune 10, 2020

STRABAG, a major Austrian construction company, has been using drones for the last four years and has found that drone mapping significantly saves time and reduces risk. In some cases, the technology also provides results that were never before possible with traditional surveying methods.

After more than four years of working with Pix4D and trialing other options, STRABAG’s conclusion is: “Pix4D is very easy for mapping and processing.”

Drone mapping in construction progress monitoring.
Pix4D drone mapping software is heavily used by STRABAG construction company

STRABAG has been using Pix4D's software for a number of years, mapping hundreds of projects using photogrammetry technology. In this article, we focus on just three:


About STRABAG

Headquartered in Austria, STRABAG has over 72,000 employees and offers services worldwide. Their drone division is based in Regensburg, Germany and is focused on mapping infrastructure such as roads and bridges, measuring stockpiles, and monitoring construction sites.

The drone division is a team of six people who manage complex, large scale mapping projects all over the world. This scale is achieved in part by training STRABAG’s business units to map projects with their own drones. The business units handle more than 40 projects every month – a number which continues to increase.

Mapping with drones and Pix4D photogrammetry software

Results and compatibility with an existing workflow are just two of the factors taken into account when choosing a software solution. It was important to the team at STRABAG that any software would be easy to use, produce reliable results, and be compatible with other software such as CAD and BIM. As well as being easy-to-use, the software has to seamlessly integrate with existing construction workflows and scale to handle the ever-growing number of projects.

After comparing other software solutions, STRABAG choose Pix4D – “We have many people in our company a smooth workflow is important to us, and Pix4D is one of the easiest software to use,” comments Thomas Gröninger, Head of STRABAG UAV Division.

Pix4Dengine: seamless integration for enterprise

For complex, large-scale projects, the need for accelerated processing times, and streamlined workflows means that Pix4D’s enterprise solutions became the right choice for STRABAG. Pix4Dengine API and SDK open the power of Pix4D’s processing algorithms to any business. Pix4D’s processing engine was customized to meet the needs of STRABAG, and hosted on a secure cloud computing server. The teams benefit from higher flexibility and reduced processing times.


3D rendering of bridge.
3D rendering of the bridge that was renovated in Autopista al Mar 1 road in Colombia

Surveying inaccessible assets with photogrammetry

Road construction with bridge renovation in Colombia

The state of Antioquia in northwest Colombia is a mountainous and densely forested region. STRABAG has been contracted to plan, build, finance and operate 176 kilometers of motorway winding through this difficult terrain. The Autopista al Mar 1, as the road is known, connects the state capital, Medellin, and the municipality of Bolombolo.

Project information

Project typeHighway construction and modernization
LocationColombia
Project size176 km
Number of imagesMore than 20 bridges mapped with up to 2,000 images per location
ResolutionGSD ~1.2 pixels per centimeter
WorkflowDJI Inspire 1 drone with an X3 camera operated by the Pix4Dcapture app + GCPs
SoftwarePIX4Dengine
PIX4Dcapture

The Autopista al Mar 1 consists of 75 kilometers of new road construction, as well as the modernization of 65 kilometers of existing road, a tunnel, plus the reconstruction of over 20 bridges. The bridges are key to the success of the project, yet technical details were sparse. To map everything (including foundations, pillars, and surrounding terrain), STRABAG turned to drones and Pix4D software.

“With drones, we were able to fly around the bridges and get a complete overview of the infrastructure: sides, undersides, and terrain. In the end, you have much more data than what you would get with traditional surveying methods, and everything is done faster,” says Thomas.

Explore the 3d map of the La Negra Bridge project

Click on the image to explore the 3D render of La Negra Bridge

Bridge inspection can be a complex, costly and time-consuming process

With traditional surveying methods, bridge inspection is a complicated, expensive and time-consuming process. It’s also dangerous, with potential risks including traffic and precarious locations. Thomas explains: “If you take the points with a GPS rover you have to walk in the traffic. It’s very dangerous and sometimes not possible. With drones, you can fly around the bridge while traffic is still flowing. That’s why it’s better to fly with a drone and use photogrammetric mapping than traditional surveying methods.”

On top of that, some areas of the bridge are impossible to map with traditional methods. Thomas continues: “With traditional methods, we have to measure every point on the bridge. If the bridge is 100 meters wide and 200 meters long, we have to measure a point every meter and at every edge. We have to measure more and more points by traditional total station methods. This process takes time and it’s not good enough because we cannot measure points under the bridge, nor the column of the bridge, nor the beam under the bridge. We can only measure where we can walk, which means we only get data on the bridge surfaces. On top of those limitations with traditional surveying methods, the very steep terrain of this Colombian project was also a constraint, being inaccessible for normal surveyors. We had to use a different technology.”

Challenges of mapping a bridge on a steep terrain

3D rendering of bridge project showing projected work and rayCloud using photogrammetry software and drone mapping.
3D rendering of bridge project showing rayCloud technology in photography

The project had its challenges and was complicated by the mountainous terrain. The issues faced by the team include:
  • Bridge foundations and pillars had to be mapped in a free-flight mode with the Pix4Dcapture app.
  • Because both the foundation and pillars were in the area of interest, ground control points (GCPs) had to be placed both horizontally on the road and vertically on the bridge pillars. In addition, there was no GNSS connection network, meaning that GCPs had to be measured using total stations.
  • The area had very dense vegetation which had the potential to generate inconvenient noise and artifacts on the 3D point clouds. However, with Pix4D’s rayCloud solution, it is easy to edit the point clouds and generate accurate models.

Streamlining processes with Pix4D drone mapping software

All the images collected were processed with Pix4D mapping software and generate accurate and highly-detailed 3D models of the existing bridges and georeferenced orthophotos of the surrounding area (resolution or the ground sampling distance (GSD) of 1.2 pixels per centimeter). The 3D models helped the team visualize in details the areas of interest and subsequently efficiently plan the construction project with precise measurements and volume calculations. They vectorized the 3D point clouds to get bridge lines and used the generated DTMs to compute volumes.

For STRABAG, Pix4D software streamlined the process and reduced the time required to map each bridge. “In comparison to other photogrammetry software, Pix4D proved to be faster. Its integrated automatic features such as the automatic GCP marking which significantly decrease manual processing times. Other software was tested in previous projects but proved to be slower or had problems aligning complex structures such as bridges,” confirms Thomas.

traditional survey vs Pix4D
Pix4D drone mapping software represent a huge upgrade from the traditional methods of land surveying.

Using drones for this project not only saved time and money but also measured what would otherwise be impossible to measure at all. As we have already analyzed, few industries are as complex or potentially dangerous as construction.


Earthworks monitoring with aerial images captured by drones
Earthworks are monitored faster and more accurate using aerial images captured by drones

Monitoring earthworks 80% faster

Earthworks management in Germany

When it’s complete, the Facility for Antiproton and Ion Research in Darmstadt, Germany, will be one of the largest and most complex particle accelerators in the world. The centerpiece will be a ring accelerator with a circumference of 1,100 meters. Construction of the ‘FAIR Ring’ is only one part of the project. This four-year project involves ten countries so easy and efficient earthworks monitoring is essential.

Project information

Project typeConstruction of a large facility
LocationDarmstadt
Project size30km²
Number of images1,800 images per month
ResolutionGSD ~1.3 pixels per centimetre
WorkflowMicrodrones MD4-1000 drone with Sony RX1 R2 42 MP camera + GCPs on plates
SoftwarePix4Dengine

The value of up-to-date data

To have up-to-date data and be able to calculate volume changes over time, STRABAG flies drones over the area at the end of each month. They process collected images with Pix4D software to compute Digital Terrain Models (DTMs) and calculate volumes to estimate changes. These changes can be easily shared with stakeholders, such as project managers and contractors. It also serves as a record of the project, as well as documenting that work is progressing on time and according to plan.

Mapping a construction site using drones and photogrammetry software
Drone mapping greatly benefits construction project management

Delivering results faster

Drones and Pix4D represent a significant time saving, delivering results up to 80% faster than traditional methods. A single survey using standard techniques would take approximately two weeks. However, with a drone, STRABAG can fly the area in one day and process images in another. “We need two days in total for flying and processing compared to two weeks — that is why we are using drone technology. We save a lot of time, and the accuracy is good,” explains Thomas.

A group watching a drone take off to map a dam in Kenya
Drone mapping allows construction companies to complete projects faster and with greater efficiency

Documenting large-scale projects with more efficiency

Dam construction in Kenya

Kenya’s Thiba dam will change the face of the region. With a secure, year-round water supply, a second harvest every year will be possible.

Before construction could begin, STRABAG had to map 8 square kilometers of the area surrounding the dam. Using drones was the most efficient and cost-effective way to get an aerial overview, and create 3D models of the terrain.

Project information

Project typeDam construction
LocationKenya, Nairobi region
Project size8km²
Number of images6,500
ResolutionGSD ~2.4 pixels per centimeter
WorkflowInspire II drone with an X4S camera + GCPs set in concrete
SoftwarePix4Dengine

To accurately map this large-scale project and acquire georeferenced data, STRABAG placed a number of GCPs. But they immediately ran into a challenge: measuring the GCPs. Spraying marks on the ground for GCPs was then impossible as heavy rain fell each morning, erasing the marks, meaning that data collected one day could not be reliably compared to data collected the next.

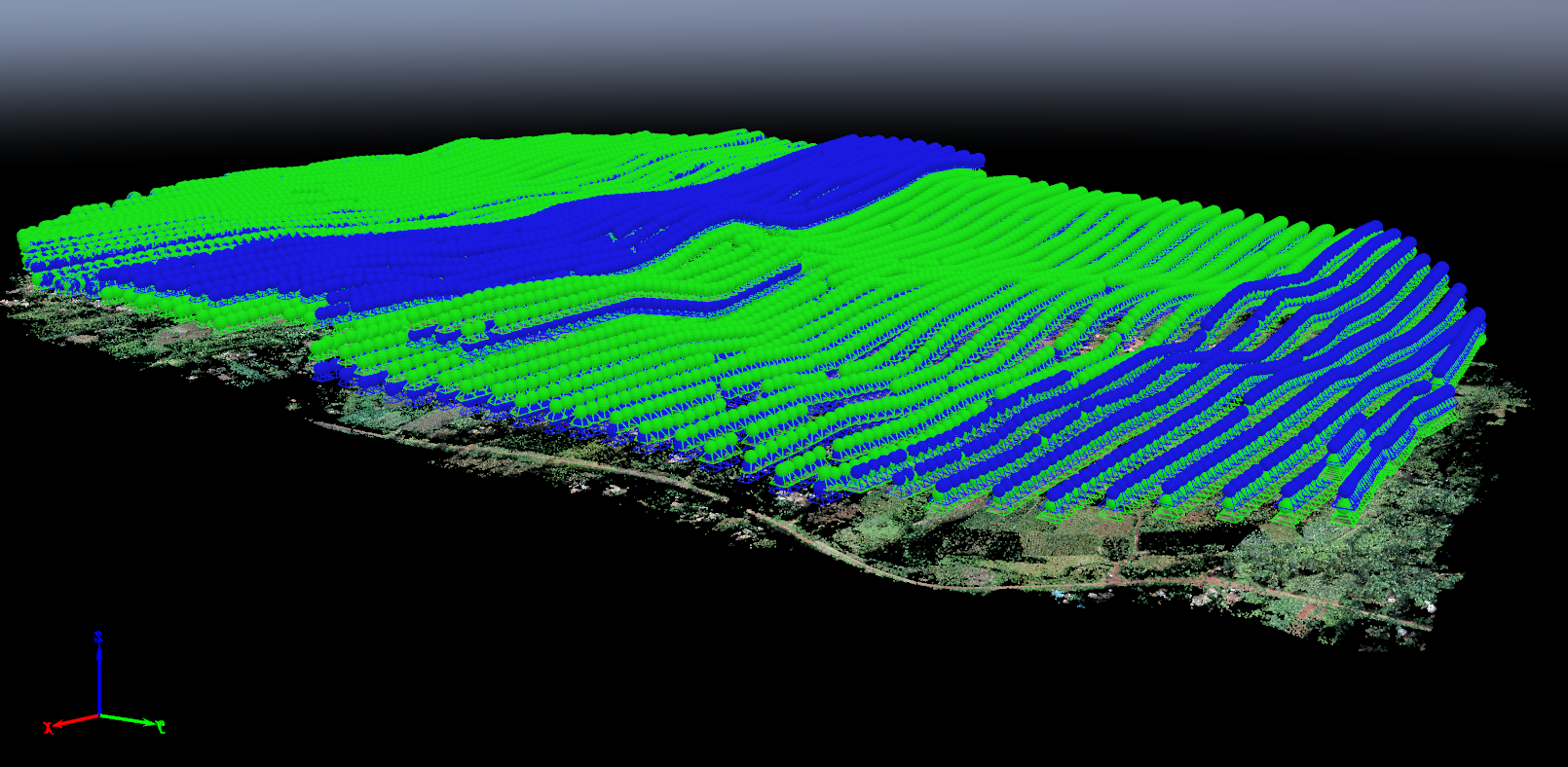

A rayCloud showing images captured in the dam project.
rayCloud photogrammetry software allows users to connect the original images to each point of the 3D reconstruction to visually verify and improve the project accuracy.

The team found a solution by building GCPs made of concrete which finally enabled them to obtain the measurements and to be confident in their accuracy. The process of building and measuring GCPs lasted three weeks – yet once the GCPs were in place, it only took three days to fly and collect images of the whole area. The large number of images took the team a week to process with Pix4D.

Because the GCPs marking process proved so challenging, STRABAG decided to search for a more time-efficient solution and recently trialed PPK-Direct Georeferencing system with their drones. “This GPS system is in great compatibility with Pix4D software. We tested it, and we got very good results. You don’t have to compute calibration on Pix4D anymore. You have GPS information embedded in the image file with an accuracy of better than two centimeters. We can then reduce our GCPs and in the future save a significant amount of time. For instance, on this project - we would not need 100 GCPs anymore but only 20,” explains Thomas.

Different projects, a single tool

At first glance, the projects featured here are very different, in scale, complexity, and location. Yet for the most efficient collection and processing of data, STRABAG relies on the same toolbox: drones and Pix4D drone mapping software.

In our free webinar, Harvey Jassal, Innovation & Technology Manager at Costain, joins Pix4D's Julian Norton to discuss how drone mapping can save both time and money in construction projects. Watch the webinar now.
